Convolution begins with a counting story

Beginner Mathematics
Created by Best · 12.04.2026 at 20:18 UTC

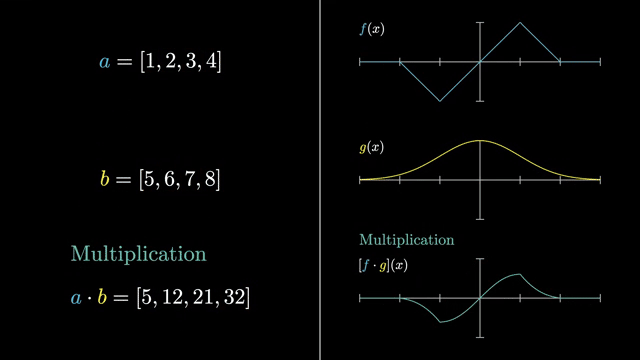

The lecture starts by contrasting three ways to combine two lists or two functions: addition, pointwise multiplication, and convolution [1]. Addition and pointwise multiplication inherit familiar arithmetic on individual entries, but convolution is structurally different: each output entry gathers information from many pairings of inputs. The main motivation is that this exact pairing-and-aggregation pattern appears across probability, image processing, differential equations, and polynomial multiplication, so one operation ties together topics that often seem unrelated in a first course [1][2].

A useful mental model is: choose an output index, collect every input pair that can contribute to it, multiply the pair, then add those products. In notation,

$$(a \ast b)_n = \sum_i a_i b_{n-i}$$

which is equivalent to summing over all index pairs $(i,j)$ satisfying $i+j=n$. The transcript emphasizes that the symbols matter less than the geometric picture, because once the geometry is clear, the formula becomes a compact recording of that picture rather than a rule to memorize [1][4].

Professional intuition check: convolution behaves like a controlled overlap integral in discrete form. If one sequence is a single impulse, the output becomes a shifted, scaled copy of the other sequence. If both sequences are spread out, each output entry blends many interactions, which is exactly why convolution can model smoothing, mixing, and redistribution processes so naturally.


Sources

University approvals: 0
Related cards
This card links to
Other cards linking here
Video Content
Tasks
Question 1

What makes convolution fundamentally different from pointwise multiplication of two sequences?

Question 2

In $(a\ast b)_n = \sum_i a_i b_{n-i}$, what does $n$ represent?

Question 3

Why does the same convolution structure appear in both probability and polynomial contexts?
